Notes on Animated Dinosaur Repairs

Every summer is the season with the highest failure rate of animated dinosaurs, mainly due to sun exposure. Once the dinosaur skin is sunburned, it will cause internal water ingress and cause a series of problems. What materials are needed for repairs and what are the precautions? The Museum Dinosaur Manufacturer will tell you next.

First we need to know the materials for making animated dinosaurs. The most common material is sponge silicone, which is characterized by softness and elasticity. And the touch is very real, just like touching a real creature. A motor and a transmission structure are installed inside to make a dinosaur model with action function. At the time of production, steel materials such as channel steel square tubes and square tubes are used first, and the dinosaur-shaped steel skeleton is cut according to the design drawings. Then weld according to the action of the animated dinosaur model. The moving parts are welded into a movable joint, and the non-moving parts are directly welded into a fixed structure.

Next, Animatronic Dinosaur is equipped with a motor and a transmission structure. The motor can be a DC brush motor or a stepper motor. There is also a pneumatic animation dinosaur that can only use a cylinder. No matter if you use a motor or a cylinder, you can make a cool model, but the cost of the cylinder is relatively higher.

Finally, the sponge is used as a base. The artist creates a corresponding rough model of the dinosaur according to the type and shape of the dinosaur. After adding the skin fiber, it can be colored by waterproof sealing process. Generally, the color is oily acrylic paint. Prevent discoloration after rain.

After the production is completed, a motion program is written, and an animated dinosaur model is considered to be completed. Of course, there is a dinosaur model made of FRP, but the surface of the material is hard, and a motor cannot be added to produce dynamic effects. And it is easy to fade and crack when placed outdoors for a long time.

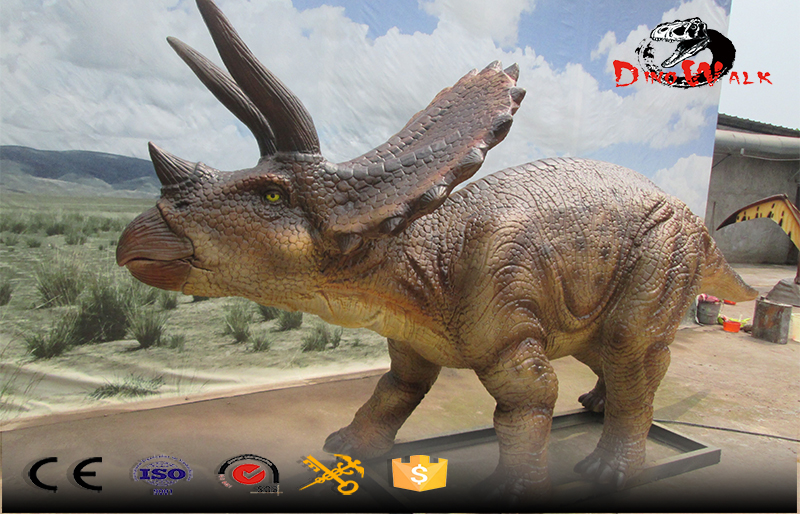

Animatronic Dinosaur

So the question is, what materials should be prepared for the repair of animated dinosaurs? What should I pay attention to? The Dinosaur Costume supplier can tell you below.

1.Animated dinosaur repair material

Fiber cloth, silicone glue, sponge, needle thread, acrylic paint, gasoline, eyes, teeth, motor, fuse, welding machine, cutting machine, utility knife, air compressor

2. Maintenance method

Using the above materials, stitch the small damaged areas of the animated dinosaur's epidermis with a needle and thread, and then evenly apply silicone glue to the sutures to prevent water ingress. Then use acrylic paint to make up the color. If the skin is damaged in a large area, you need to fill the sponge first, then adhere the fiber cloth to it with silicone glue, then apply a layer of silicone glue as a waterproof layer, and finally use acrylic paint to dilute it with an air compressor. Combined with paint spray gun. If the motor is damaged, the first step is to repair the motor. The method is to cut the skin with a utility knife, replace the motor that needs maintenance, and then perform the repair operation.

3. Maintenance precautions

When repairing animated dinosaurs, we must pay attention to fire and heat protection. In some steel frame fracture areas, when welding is required, the skin must be peeled off to avoid sparks or heat generated by welding. The sponge filling layer will be ignited. .

Sometimes when repairing the epidermis, there will be water and dust on the surface. Be sure to clean it and then repair it. If conditions permit, you can use the toilet to clean the epidermis. The effect of the repair is best after drying.

The above are the precautions for the maintenance of animated dinosaurs, I hope to help everyone.
